Droughts, Floods and the Earth's Gravity, by the GRACE of NASA

By Dr. Ethan Siegel

When you think about gravitation here on Earth, you very likely think about how constant it is, at 9.8 m/s2 (32 ft/s2). Only, that's not quite right. Depending on how thick the Earth's crust is, whether you're slightly closer to or farther from the Earth's center, or what the density of the material beneath you is, you'll experience slight variations in Earth's gravity as large as 0.2%, something you'd need to account for if you were a pendulum-clock-maker.

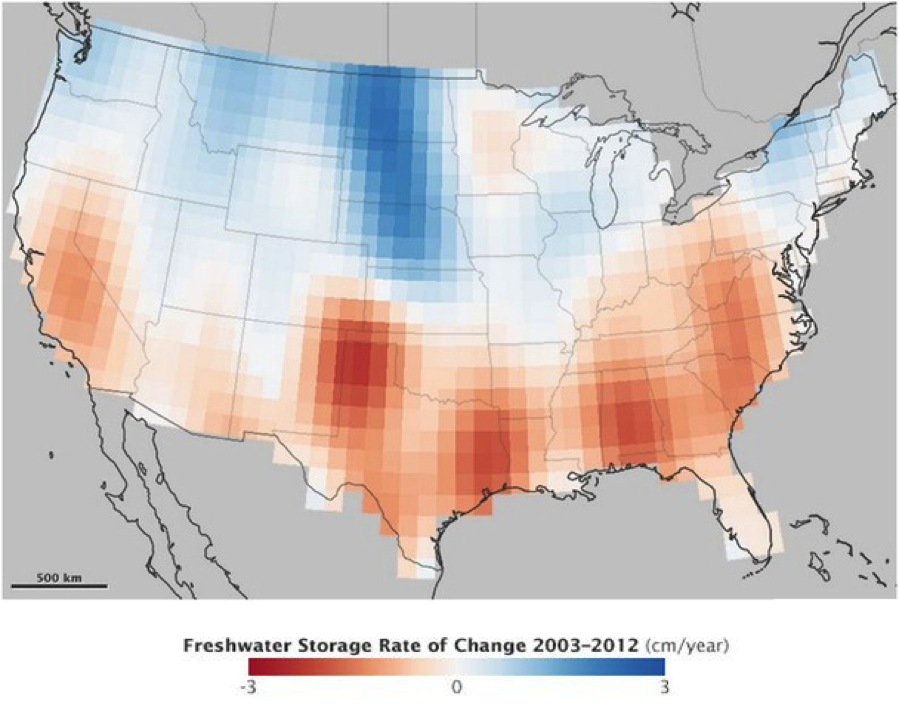

Image credit: Image credit: NASA Earth Observatory image by Jesse Allen, using GRACE data provide courtesy of Jay Famigleitti, University of California Irvine and Matthew Rodell, NASA Goddard Space Flight Center. Caption by Holli Riebeek.

But surprisingly, the amount of water content stored on land in the Earth actually changes the gravity field of where you are by a significant, measurable amount. Over land, water is stored in lakes, rivers, aquifers, soil moisture, snow and glaciers. Even a change of just a few centimeters in the water table of an area can be clearly discerned by our best space-borne mission: NASA's twin Gravity Recovery and Climate Experiment (GRACE) satellites.

Since its 2002 launch, GRACE has seen the water-table-equivalent of the United States (and the rest of the world) change significantly over that time. Groundwater supplies are vital for agriculture and provide half of the world's drinking water. Yet GRACE has seen California's central valley and the southern high plains rapidly deplete their groundwater reserves, endangering a significant portion of the nation's food supply. Meanwhile, the upper Missouri River Basin—recently home to severe flooding—continues to see its water table rise.

NASA's GRACE satellites are the only pieces of equipment currently capable of making these global, precision measurements, providing our best knowledge for mitigating these terrestrial changes. Thanks to GRACE, we've been able to quantify the water loss of the Colorado River Basin (65 cubic kilometers), add months to the lead-time water managers have for flood prediction, and better predict the impacts of droughts worldwide. As NASA scientist Matthew Rodell says, "[W]ithout GRACE we would have no routine, global measurements of changes in groundwater availability. Other satellites can’t do it, and ground-based monitoring is inadequate." Even though the GRACE satellites are nearing the end of their lives, the GRACE Follow-On satellites will be launched in 2017, providing us with this valuable data far into the future. Although the climate is surely changing, it's water availability, not sea level rise, that's the largest near-term danger, and the most important aspect we can work to understand!

Learn more about NASA's GRACE mission here

Kids can learn all about launching objects into Earth's orbit by shooting a (digital) cannonball on NASA's Space place web site.
